LED Transparent Grille Screen Rental Events Glass Curtain Display Window P3.91 To P7.82
If you are looking for an outdoor LED advertising screen that is lightweight, high-clarity, and can withstand strong winds, we highly recommend this LED Transparent Grille Screen.
This is an unprecedented outdoor rental LED display that combines the convenience of easy installation and disassembly typical of rental displays with the lightweight (12kg/m²) and high transparency (65%) of transparent screens. It is the optimal choice for glass curtain walls, retail storefronts, and live events.
Feature Descriptions
- Product name: LED Rental Transparent Grille Screen
- Brand: LONGDALED
- Lightweight: 12kg/m²
- High transparency: More than 65%
- High waterproof: IP65
- High Durability: Die-casting Aluminum cabinet
- High Stability: Hollowed design, can withstand strong winds
- High Performance: More than 4000 nits (Nation Star 1921 lamp bead)
In strong outdoor winds, air can pass through the hollow design of the display cabinets, making it more stable than conventional outdoor displays. Additionally, it features fully sealed modules and cabinets. The modules are coated with the three-proof paint and covered with glue, while both the modules and die-cast aluminum cabinets are equipped with high-quality waterproof seals, achieving an IP65 protection rating.
Key Parameters
| Parameter |
Value |
| Pixel pitch |
3.91mm-7.82mm (or 2.8mm-5.6mm) |
| Module size |
500mm*125mm |
| Use Scene |
Outdoor (or Indoor) |
| IP level |
IP65 |
| Packing |
Nation Star 1921 |
| Connectors |
3M gold plating |
| Drive IC |
High brush ICN2038 / 8 scan |
| Brightness adjustment |
256 Level |
| Physical density |
32768 pixel/m² |
| Viewing Angle |
160° |
| Brightness |
4000 cd/m² |
| Viewing distance |
5m-12m |
| Transparency |
65% |
| Power requirements |
AC85-240V |
| Avg power consumption |
200W/m² |
| Gray level |
65536 |
| Refresh Rate |
3840HZ |
| Max consumption |
600W/m² |
| PCB board |
6 layer, 2mm thick |
| Cabinet size |
1000mm*500mm*75mm |
| Life span |
≥100000h |
| Cabinet Weight |
9.5kg/Cabinet |
| Installation way |
Rental bracket (or Hoisting, Fixed) |
| Maintenance way |
Front maintenance |
Scenarios

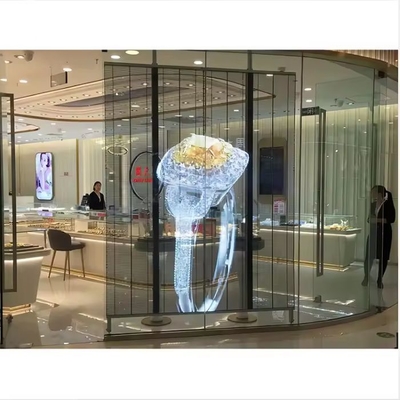

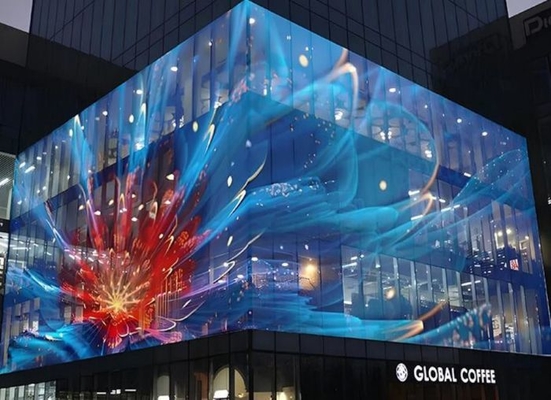

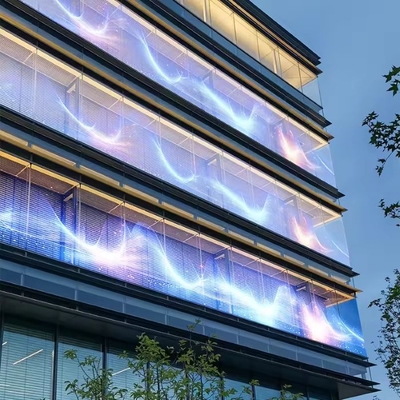

LED Transparent Grille Screen is mainly used in building glass curtain walls, urban landmark floors; commercial center windows, store facades; stations, jewelry stores, automobile 4S stores, etc.; indoor glass guardrails, car window advertising; museums, art galleries and other art spaces Display; entertainment and performing arts, etc.
It supports high brightness of over 4000 nits. Its protection level exceeds IP65. Only after the rigorous waterproof testing can it be put on the shelves for aging.
Size of the Displays
This is a 500x1000mm Die-cast Aluminum "Transparent Screen Cabinet", it can also be made into 500*500mm. Its weight is 9.5KG.

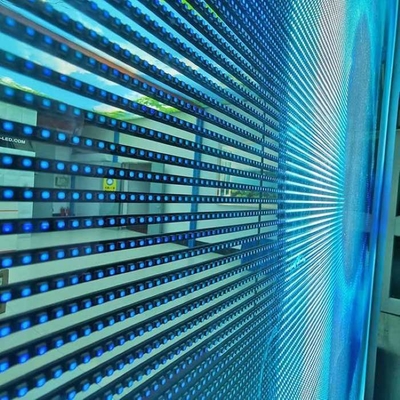

LED modules size is 500*125 mm, The pixel pitch is 3.91-7.82 mm.
The rear includes: Die-casting Aluminum Handle; Fast Lock; Anti-collision Corner; HUB Integration Control Box; Two Power Airplug and Two Signal Airplug, input & output; Waterproof sealing rings.
Packing
Flight case Size: 109 * 69 * 74 CM
Packing QTY: 6 pcs in 1 case.
